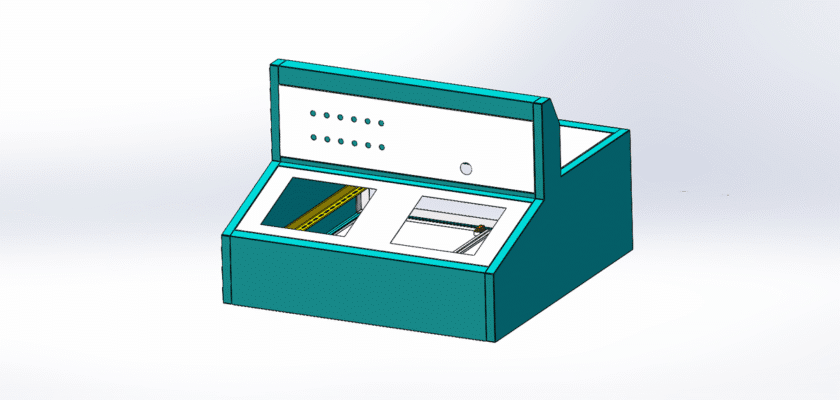

Are you designing a control room, broadcast studio, or industrial monitoring station? Our Piano-Style Console drawing provides the complete fabrication blueprint for a professional, ergonomic, and highly functional operator workstation. This design is essential for creating a command center that is both comfortable for operators and efficient for managing complex equipment.

This “piano-style” layout is the industry standard for mission-critical environments. It is defined by its ergonomic shape, featuring an angled upper “meter bridge” for mounting primary display screens and critical monitors at an optimal viewing angle. Below this sits a flat, lowered work surface, perfect for keyboards, control surfaces, mixers, or other essential hardware.

This downloadable CAD drawing is a comprehensive resource for system integrators, sheet metal fabricators, and technical furniture designers. It contains all the detailed views, precise dimensions, and assembly instructions needed to build a robust and sophisticated console. By downloading this file, you can ensure your project includes professional cable management, integrated equipment racking, and a design that enhances operator focus and productivity.

Principais recursos:

  • Ergonomic Dual-Surface Design: The drawing specifies the precise angles and height differences between the angled upper display bridge and the lower “keyboard” surface to reduce operator strain.
  • Integrated 19″ Rack Space: Includes detailed plans for mounting standard 19-inch rack rails within the console bays, perfect for housing computers, patch panels, and processing gear.
  • Comprehensive Cable Management: Features strategically designed cutouts, internal cable chases, and removable access panels to keep wiring organized, protected, and hidden from view.
  • Fabrication-Ready Details: Provides a complete plan for construction, including material callouts (e.g., steel framing, laminated wood surfaces) and assembly instructions for modular components.
  • Ventilation Considerations: The design incorporates provisions for passive or active ventilation, such as perforated panels or fan cutouts, to protect sensitive electronic equipment inside.
