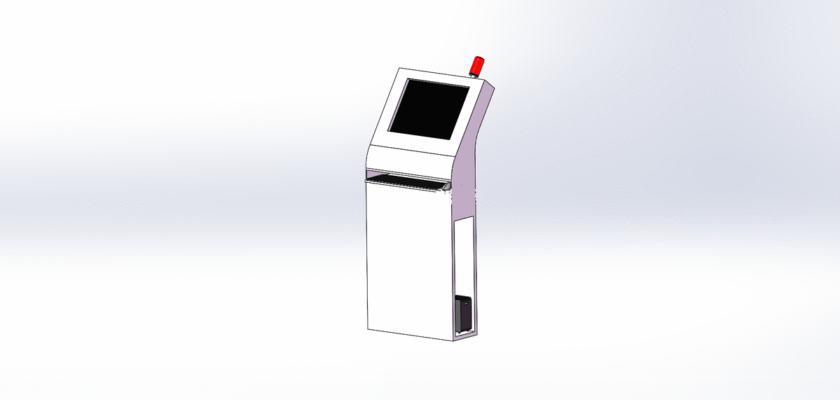

Streamline your customer flow and service design with our professional Queuing Machine Touchscreen Control Mechanism drawing. This free MechStream download provides the complete, integrated blueprint for a modern queue management kiosk, the essential tool for banks, hospitals, retail stores, and government offices. This drawing details the core “control mechanism,” showing how the user-facing touchscreen, internal computer, and ticket printer are integrated into a single, functional unit.

Designing an effective queuing kiosk requires a precise layout that balances user ergonomics, component access, and reliable operation. Our drawing package provides a complete, fabrication-ready plan, saving you valuable R&D and engineering time. It illustrates the complete assembly, including the secure mounting of the touchscreen, the internal chassis for the embedded PC, and the critical paper path and auto-cutter mechanism for the thermal printer.

This download includes universally compatible DWG, DXF, and PDF formats, allowing you to easily adapt the design for your specific brand of hardware (e.g., different screen sizes or printers) or to use it as a direct-to-fabrication plan. Download this essential file today to accelerate the development of your custom queue management system.

Principais recursos:

  • Integrated Component Chassis: A detailed internal frame showing the precise mounting points for the key electronic components: the touchscreen display, an embedded PC (SBC or Mini-PC), and the thermal ticket printer.
  • Ergonomic Touchscreen Mount: The design features an angled mounting for the touchscreen, providing an optimal viewing and interaction angle for standing users.
  • Thermal Printer Integration: Includes the full layout for an 80mm thermal printer, complete with the auto-cutter mechanism, paper roll holder, and a user-facing ticket slot.
  • Service & Access Design: Features a robust, lockable sheet metal enclosure with a hinged front or rear door, allowing for easy access to replace paper rolls and service internal components.
  • Fabrication-Ready Enclosure: The drawing is a complete sheet metal plan, including bend lines, cutouts for power/network ports, and ventilation patterns for reliable, long-term operation.
