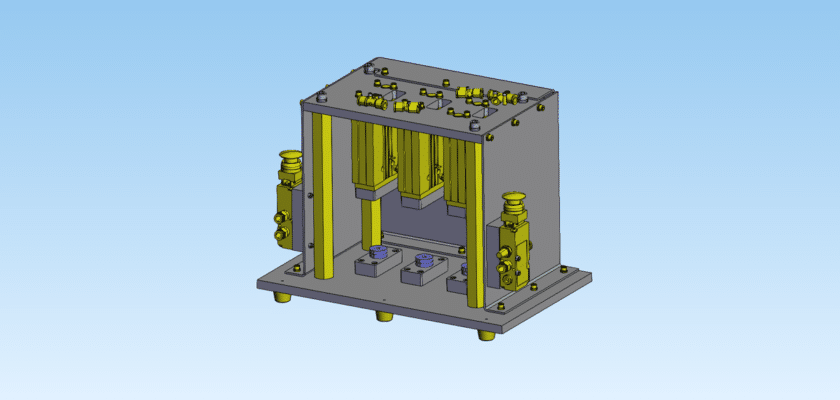

Safety is the foundation of modern industrial design, and preventing accidental machine activation is paramount. This Switch Mechanism Requiring Simultaneous Pressing Of Both Hands CAD desenho provides a robust mechanical and logical blueprint for a “two-hand control” safety system. In high-risk environments like metal stamping or hydraulic pressing, this mechanism forces the operator to occupy both hands on separate triggers to initiate a cycle. This ensures that hands are kept well away from the “point of operation” during the hazardous portion of the machine stroke, significantly reducing the risk of workplace injuries and meeting stringent industrial safety standards.

By downloading this professional desenho, you get a complete layout of a high-reliability control station. The design incorporates “anti-tiedown” logic—a critical feature that prevents the machine from operating if one switch is permanently tied or taped down. The assembly includes ergonomic palm buttons, protective shrouds to prevent accidental bumping, and the internal linkage or pneumatic logic required to verify simultaneous input. Whether you are retrofitting an older press or designing a new automated workstation, this blueprint offers a field-tested solution that balances operator comfort with uncompromising safety. The documentation provides clear material specifications for the housing and high-durability components capable of withstanding millions of industrial cycles.

Principais recursos:

  • Anti-Tiedown Logic: Specifically engineered to require both inputs to be triggered within a fraction of a second, preventing bypass attempts for maximum safety.
  • Ergonomic Palm Buttons: Features large-surface, low-force triggers designed to reduce operator fatigue during repetitive high-volume production.
  • Protective Ring Shrouds: Includes integrated mechanical guards around the buttons to prevent activation by elbows, knees, or falling objects.
  • Redundant Signal Path: The CAD model details a dual-channel configuration, ensuring that a single component failure will not result in an unintended machine start.
  • Adjustable Control Spacing: The structural frame allows for the distance between switches to be adjusted to meet specific safety distance regulations for different machine speeds.
