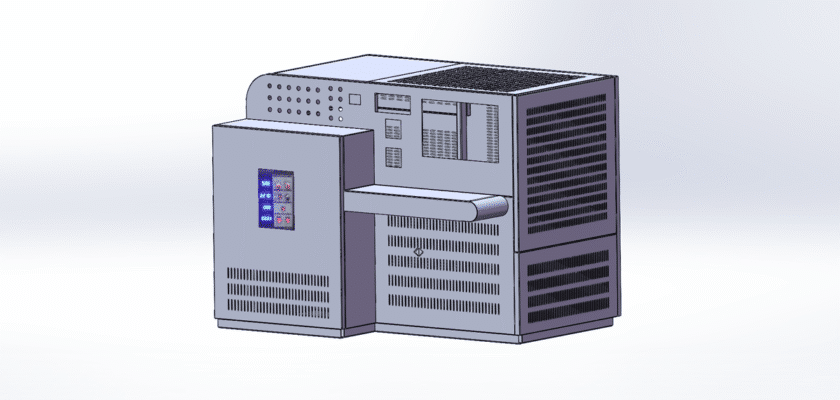

Accelerate your custom testing setup with our definitive test bench housing drawing. This expert-level CAD package is an essential resource for test engineers, R&D departments, and system integrators who need to build reliable, professional-grade enclosures. At MechStream, we deliver precise, fabrication-ready blueprints designed to protect sensitive equipment and streamline your assembly process. This drawing details a modular housing, perfect for enclosing electronics, hydraulics, or mechanical test rigs.

By accessing this test bench housing drawing, you gain immediate access to a complete manufacturing plan. The files provide all necessary 2D views, structural frame details, and panel layouts. This blueprint is engineered for functionality and adaptability, allowing you to create a controlled environment for your test components. It covers the assembly of the core frame (using common aluminum extrusions or welded steel), the fitting of removable access panels, and the integration of essential utility cutouts.

Our design emphasizes modularity and ease of access for maintenance and setup changes. The drawings include precise locations for mounting internal components, such as DIN rails, back-plates, or standard 19-inch racks. Furthermore, the plans detail critical cutouts for ventilation, cooling fans, power inlets, and data I/O panels, ensuring your test bench remains organized and functional. This is the complete technical blueprint you need to build a high-performance, durable test enclosure.

Principais recursos:

  • Design de estrutura modular: Complete fabrication details for a structural frame using aluminum extrusion or welded steel.
  • Panel & Door Layout: Full dimensions for all removable side/top panels, access doors, and optional viewing windows (e.g., polycarbonate).
  • Internal Mounting: Specifies locations for rack-mount rails, DIN rails, and component base plates.
  • Utility & I/O Cutouts: Precise locations and sizes for fans, power entry modules, and signal/data port panels.
  • Full Bill of Materials (BOM): A comprehensive list of all required profiles, fasteners, connectors, and panel materials.
