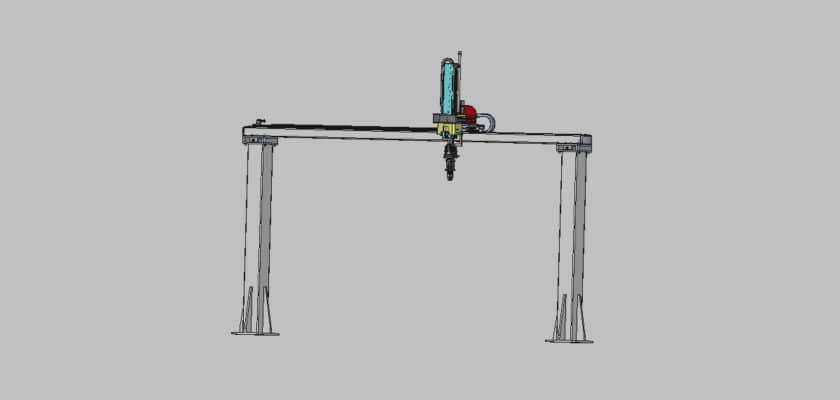

The Three-Axis Truss Manipulator is an advanced robotic system designed for precise movement and manipulation in three dimensions. This versatile manipulator is ideal for applications in manufacturing, assembly, and automation, where accurate positioning and control of objects are essential.

Key Features

  • Three-Axis Movement: Capable of moving along the X, Y, and Z axes, allowing for complex positioning and manipulation of components.
  • Truss Structure: Utilizes a lightweight yet robust truss design that provides stability and minimizes flex, ensuring reliable performance under varying loads.
  • High Load Capacity: Engineered to handle significant payloads, making it suitable for a wide range of industrial applications.

Components

  • Base Frame: A sturdy foundation that supports the entire manipulator, ensuring consistent performance and stability during operation.
  • Truss Framework: Constructed from durable materials, the truss structure enhances strength while keeping the overall weight manageable.
  • Multi-Axis Actuators: Equipped with high-precision actuators for smooth and controlled movement across all three axes, ensuring accuracy and responsiveness.
  • Control System: Features an advanced control mechanism that integrates sensors and feedback systems for real-time monitoring and adjustments.

Performance Specifications

  • Dimensions: Optimized for a compact footprint while providing ample reach and flexibility, suitable for various operational environments.
  • Speed and Precision: Designed to achieve high-speed movements with exceptional positional accuracy, essential for tasks requiring fine manipulation.
  • Durability: Built to withstand demanding industrial conditions, featuring components resistant to wear and tear.

Applications

  • Manufacturing: Ideal for automated assembly lines, capable of handling and positioning components with precision.
  • Robotics: Serves as a critical component in robotic systems for complex tasks such as welding, painting, or inspection.
  • Material Handling: Efficiently manages the movement of goods and materials in warehouses and production facilities.

Safety and Maintenance

  • Safety Features: Incorporates emergency stop functions and safety sensors to prevent accidents and ensure safe operation.
  • Maintenance Access: Designed for easy access to components for routine inspections and maintenance, ensuring long-term reliability.

Conclusion

The Three-Axis Truss Manipulator is a state-of-the-art solution for modern industrial applications, combining versatility, precision, and robustness. Its advanced design and capabilities make it an invaluable tool for enhancing productivity and efficiency in a variety of operational settings.
