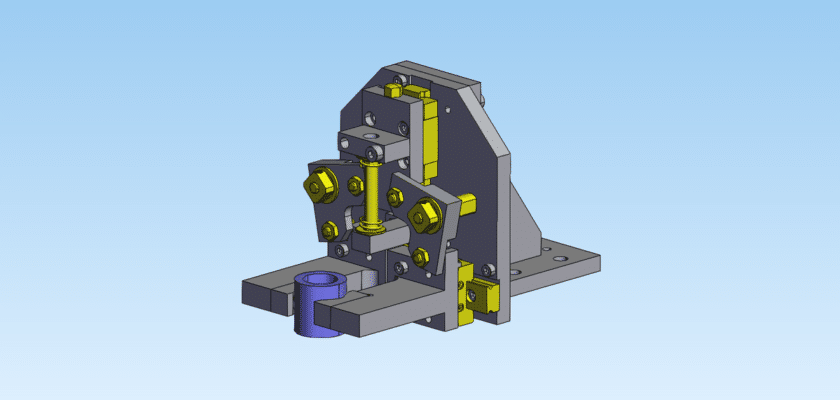

Welcome to MechStream, your trusted source for high-quality, downloadable mechanical engineering designs. We’re proud to offer this free technical drawing of a Rolling Bearing Clamping Mechanism – a precision-engineered solution for securely mounting and fixing rolling bearings in rotating machinery.
This clamping mechanism ensures zero axial shift, high torque transmission, and vibration-resistant performance in demanding applications such as gearboxes, pumps, motors, and industrial drives.
Key Features:
- Secure Bearing Retention: Uses a split-type clamping collar with precision-set screws to lock the bearing inner/outer race firmly onto the shaft or housing.
- Easy Installation & Removal: Designed for tool-friendly assembly and disassembly – reduces downtime during maintenance and repairs.
- Vibration & Slip Resistance: Engineered contact surfaces prevent micro-movement, eliminating fretting and extending bearing life.
- Universal Compatibility: Fits standard bearing bores (e.g., 20mm to 100mm) and works with deep groove, angular contact, and cylindrical roller bearings.
- Complete CAD Data Included: Downloadable in DWG, STEP, and PDF formats. Package includes 2D detailed views, 3D assembly model, exploded diagram, BOM (Bill of Materials), and tolerance specifications – compatible with AutoCAD, SolidWorks, and Inventor.
