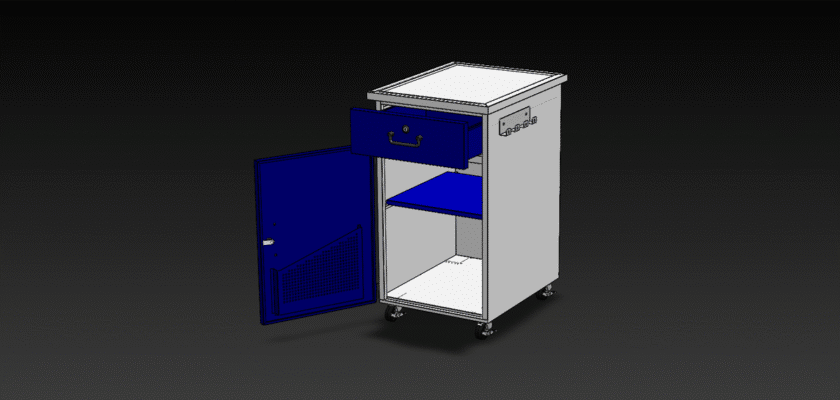

Are you tired of carrying heavy toolboxes or constantly walking back and forth to your bench? Our Tool Cart drawing provides the complete, professional blueprint for building the essential mobile workstation for any mechanic, fabricator, or serious DIYer. This CAD file details the construction of a heavy-duty, rolling tool cabinet designed for both organization and mobility.
A tool cart is the ultimate companion in a busy shop. It allows you to bring all the necessary tools for a job—sockets, wrenches, power tools, and parts—right to the point of work. This design prioritizes a high-capacity storage volume, smooth-rolling mobility, and rugged durability to withstand the rigors of a demanding environment.
This downloadable drawing package is your complete manufacturing guide. It includes all the precise dimensions, sheet metal cut lists, and assembly details you need to build a high-quality cart from the ground up. It specifies the heavy-gauge steel construction, the integration of smooth ball-bearing drawer slides, and the necessary hardware for heavy-duty casters. Download this file to skip the design phase and immediately start building a mobile storage solution that will revolutionize your workflow.
Key Features:
- Heavy-Duty Mobility: The design details a reinforced base and mounting plates for robust, locking swivel casters, ensuring easy movement and secure positioning.
- Full-Extension Drawers: Includes precise integration plans for industrial ball-bearing drawer slides, allowing for 100% access to all stored contents.
- Central Locking System: The drawing specifies the mechanism for a single, key-operated lock that secures all drawers simultaneously, protecting your valuable tools.
- Robust Frame & Top: Constructed from heavy-gauge steel for long-term durability, featuring a flat top surface that doubles as a temporary, portable workspace.
- Versatile Storage Layout: The design typically includes a combination of shallow and deep drawers, optimized for organizing various tool sizes and types.
