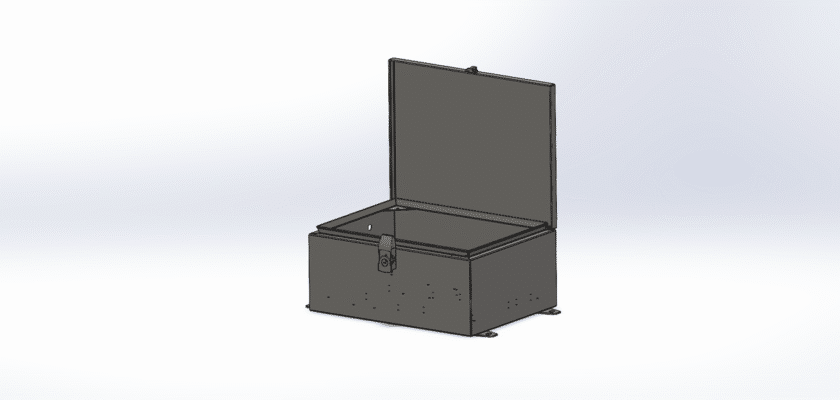

Are you searching for the perfect housing solution for medium to large-scale automation equipment? MechStream is delighted to offer the essential free technical чертеж для 400 Controller Enclosure! This enclosure is typically sized and configured to accommodate a large programmable logic controller (PLC) or a Distributed Control System (DCS) panel, often referenced by common industry standards like the “400 series” of controllers. It provides the crucial physical protection and organized space required for demanding industrial automation applications.

This free blueprint is an invaluable asset for automation engineers, control panel builders, and manufacturers. The detailed чертеж includes precise dimensional data, mounting specifications for DIN rails and backplanes, and optimized locations for human-machine interface (HMI) cutouts and cable entry points. Utilizing this powerful drawing ensures that your panel fabrication meets industry standards for wire management, thermal performance, and component accessibility. Stop wasting time on generic designs. Скачать the professional-grade 400 Controller Enclosure Drawing today and secure the robust foundation for your next automation project!

Ключевые особенности:

  • Optimized Controller Space: Designed with specific internal dimensions to comfortably and securely mount common “400 series” industrial controllers (e.g., PLCs, DCS units) and their corresponding I/O modules.
  • DIN Rail Ready: Provides precise internal specifications for mounting DIN rails, simplifying the installation of terminal blocks, power supplies, and auxiliary components.
  • Integrated Cable Management: Details dedicated knockouts and entry points, ensuring organized and secure routing of control, power, and communication wiring.
  • Environmental Protection: Features sealing and structural details suitable for achieving a high IP rating, protecting sensitive electronics from dust, moisture, and debris typical of factory settings.
  • User Interface Prepared: Includes front panel specifications with designated areas and dimensions for HMI touchscreens or status indicators.
