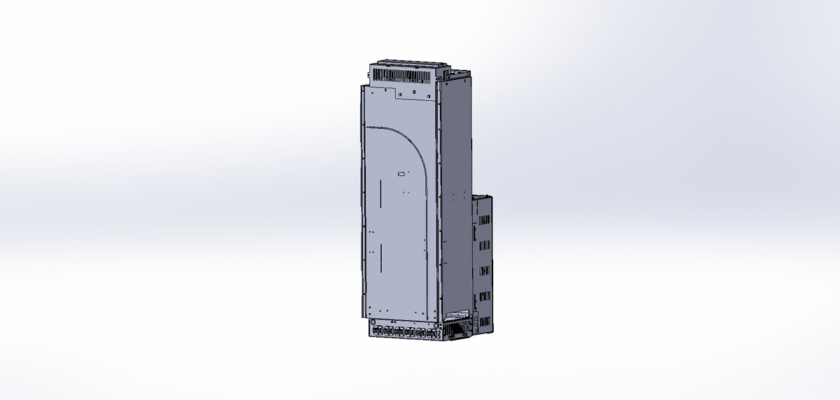

Сайт ABB Frequency Converter (VFD) represents the industry standard for precision motor control, optimizing energy use and extending the lifespan of machinery across virtually every industrial sector. MechStream is excited to offer a high-detail technical чертеж of a typical ABB-style VFD unit as a critical free download. This CAD model provides the essential dimensional and interface specifications required to seamlessly integrate this powerful component into electrical control panels, motor control centers (MCCs), and process skids.
Это высококачественное бесплатный рисунок is an indispensable resource for minimizing integration risks, especially around thermal management and cabinet space planning. It includes details for wall mounting, heat sink clearances, and I/O terminal block locations, which are crucial for the efficient and compliant installation of power electronics. Whether you are upgrading an existing system, performing thermal simulations, or designing a new automation line, leveraging this precision model ensures compatibility and peak performance. Download your powerful ABB Frequency Converter drawing today, exclusively from MechStream, and accelerate your progress toward world-class industrial automation.
Ключевые особенности:
- Accurate Dimensional Model: Provides precise physical dimensions for wall-mounting, clearance, and external interfaces, essential for tight cabinet designs.
- Thermal Management Data: Includes heat sink depth and ventilation requirements, allowing engineers to plan effective cooling systems to maintain VFD efficiency.
- Standardized Interfaces: Details the location of power input/output, control wiring terminals, and communication port interfaces (e.g., Modbus, Ethernet).
- Wide Application Utility: The general-purpose design makes it suitable for sizing enclosures for pumps, fans, conveyors, and general machinery control.
- Instant Free Access: Obtain this essential, professional-grade VFD чертеж at no cost, accelerating the design phase of your motor control projects.
