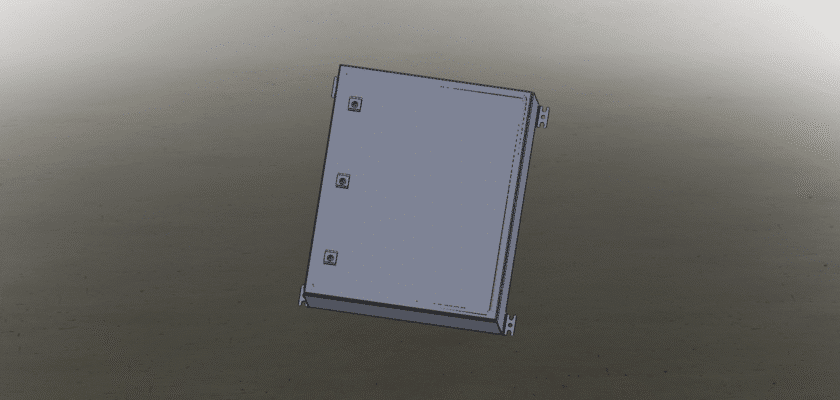

Сайт AE Box (Compact Enclosure) is an industry-favorite solution for housing and protecting sensitive electrical and electronic components in diverse environments. MechStream is delighted to offer the highly detailed technical чертеж of a standardized AE Box model as a vital free download. This CAD model provides the precise dimensional and structural specifications necessary for wall mounting, internal component layout, and external cable entry planning for this compact, robust enclosure. Whether you are building small control panels, industrial interfaces, or terminal junction boxes, this drawing is an essential resource.

Это высококачественное бесплатный рисунок eliminates guesswork and streamlines your project planning. It clearly outlines the durable construction, including the single-piece body and the hinged front door, optimized for protection and accessibility. The model’s internal details include the precise locations for the removable mounting plate and the gland plate area, crucial for efficient cable entry and routing. By leveraging this precision чертеж, you ensure optimal component density, compliance with mounting standards, and maximum protection for your hardware. Download your powerful AE Box drawing today, exclusively from MechStream, and accelerate your time from design concept to final installation.

Ключевые особенности:

  • Compact Wall-Mount Design: Provides the base dimensions and mounting hole locations for a typical, rigid, wall-mounted compact enclosure.
  • Removable Mounting Plate: Includes details for the standard rear mounting plate, allowing pre-assembly and flexible positioning of internal components (PLCs, power supplies).
  • High Protection Ready: The mechanical design supports integration of gaskets and robust locking systems to achieve high protection ratings (e.g., IP55/IP66).
  • Gland Plate Specifications: Details the removable base plate for simple, yet secure, cable entry customization.
  • Instant Free Access: Obtain this essential, professional-grade compact enclosure чертеж at no cost for immediate use in mechanical and electrical design software.
