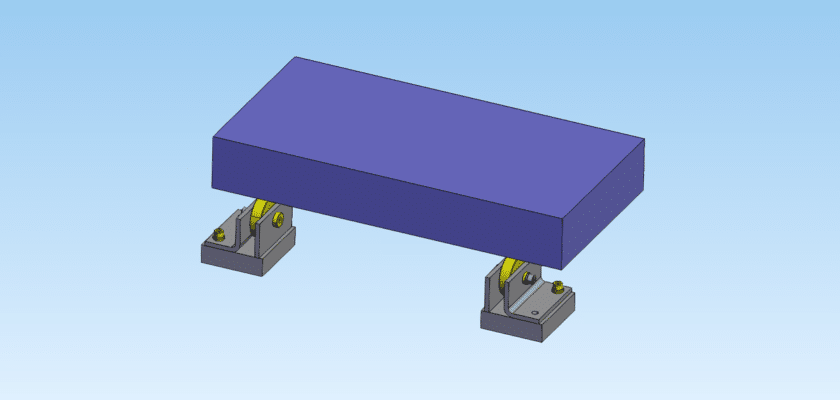

Improve the efficiency and lifespan of your transport systems with our professional Conveyor Auxiliary Rollers drawing. In complex material handling setups, standard drive and tail pulleys often require supplemental support to manage belt sagging, provide transition curves, or assist in product sorting. This technical CAD resource provides a comprehensive blueprint for high-durability auxiliary rollers designed to reduce mechanical friction and ensure smooth movement across diverse industrial environments. By downloading this file, you gain access to a proven mechanical design that optimizes load distribution and enhances the overall stability of your conveyor line.
The design featured in this drawing focuses on a low-inertia, high-load-bearing architecture. It includes detailed schematics for internal bearing press-fits, axle configurations, and various mounting bracket options suitable for different frame types. Whether you are dealing with high-speed packaging lines or heavy-duty bulk material transport, these rollers are engineered to minimize rolling resistance and noise levels. By utilizing this blueprint from MechStream, you can ensure that your auxiliary components are perfectly aligned, preventing premature belt wear and reducing the energy consumption of your drive motors.
At MechStream, we prioritize reliability and ease of integration. This drawing set provides the precise tolerances required for manufacturing rollers from various materials, including galvanized steel, stainless steel, or high-density polymers. The assembly is designed for rapid installation and maintenance, featuring standardized shaft ends that fit into most common conveyor frames. Download this technical drawing today to upgrade your system’s performance with professional-grade auxiliary rollers designed for long-term industrial service.
Ключевые особенности:
- Precision Bearing Integration: Designed for standard sealed ball bearings to ensure smooth rotation and long service intervals.
- Versatile Mounting Options: Includes detailed designs for spring-loaded, threaded, or fixed-axle mounting configurations.
- Low-Friction Surface Finish: Optimized roller tube geometry to prevent belt slippage and reduce heat buildup during high-speed operation.
- Высокая грузоподъемность: Engineered structural wall thickness to resist deflection under heavy product weights or high belt tension.
- Modular Diameter Scalability: The drawing serves as a template that can be easily scaled for different conveyor widths and height requirements.
