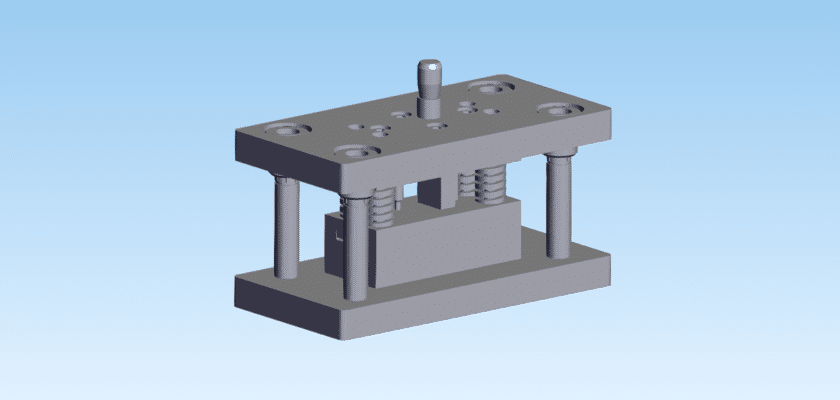

Enhance your fabrication precision with our comprehensive Cutting Die 5 Inventor technical documentation. This professional-grade cutting die is engineered for high-accuracy blanking operations, providing the structural rigidity required for clean material separation in industrial environments. Optimized specifically for the Autodesk Inventor platform, these files utilize native parametric constraints and iFeatures, allowing designers to easily scale the die for various material gauges while maintaining critical shear clearances.

The provided чертеж package offers an exhaustive look at the assembly’s internal mechanics, including the punch retainer, the hardened die block, and the precision-engineered stripper plate. By analyzing these blueprints within an Inventor environment, engineers can perform stress analysis and simulate the punch stroke to identify potential interference before physical manufacturing begins. We provide these high-fidelity CAD resources for free to help streamline your tool-room workflow and ensure your press tools meet the highest standards of durability.

Our files include fully detailed 2D drafting sheets and 3D models with a clean feature tree, making it simple to adapt the design for specific press bolster configurations. Whether you are producing complex flat components or simple industrial blanks, the Cutting Die 5 provides the stability needed to minimize burrs and extend tool life. Download this essential Inventor resource today to improve your stamping efficiency and reduce production downtime.

Ключевые особенности:

  • Autodesk Inventor Optimized: Native .iam and .ipt files with full access to assembly constraints and parametric dimensions.
  • Hardened Tool Steel Specification: Designed for implementation with high-carbon, high-chromium steels for maximum edge retention.
  • Precision Pillar Alignment: Features standardized guide pillar layouts to maintain sub-micron accuracy during high-speed strokes.
  • Efficient Slug Management: Includes optimized relief angles in the die block to ensure consistent scrap shedding and prevent tool jam.
  • Interchangeable Punch Design: Engineered with a modular retainer system for quick maintenance and replacement of cutting components.
