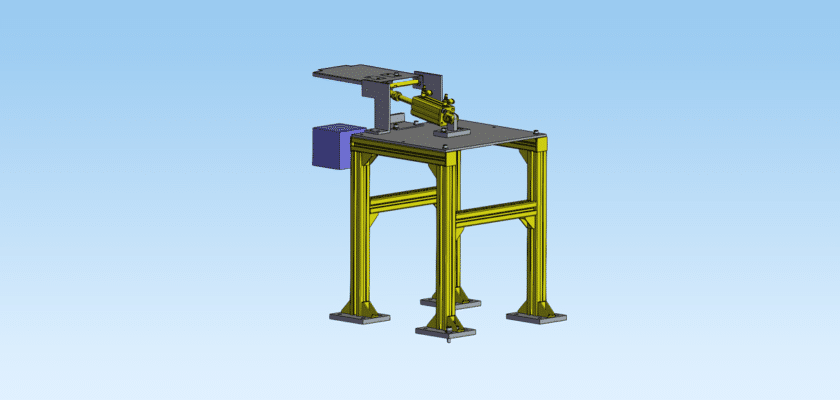

Upgrade your facility’s accessibility and safety with our comprehensive Door Mechanism Using Cylinder drawing. This CAD resource is an essential blueprint for designing automated heavy-duty doors, industrial gates, or protective machine hatches. In high-traffic industrial environments, manual door operation is often inefficient or unsafe; this mechanism utilizes fluid power to provide smooth, controlled, and repeatable opening and closing cycles.
By downloading this drawing, you access a professionally engineered leverage system that optimizes the force output of a standard cylinder. The design addresses critical mechanical factors such as pivot point stress, angular velocity, and end-of-stroke cushioning. Whether you are working on a cleanroom sliding door or a heavy blast-resistant swing gate, this model provides the foundational geometry needed to ensure the actuator and the door hinges work in perfect synchronization without binding.
The assembly includes detailed views of the mounting brackets, linkage arms, and cylinder clevis attachments. It is designed to be compatible with both pneumatic and hydraulic systems, depending on the load requirements of your specific application. Using this technical drawing helps reduce development time and ensures that your final installation meets the rigorous demands of industrial automation standards.
Ключевые особенности:
- High-Torque Linkage System: Optimized geometry that maximizes cylinder force during the initial “breakaway” phase of door movement.
- Adjustable Speed Control: Integrated mounting points for flow control valves to fine-tune opening and closing speeds.
- Fail-Safe Manual Override: Includes a design provision for quick-release pins to allow manual operation during power or pressure loss.
- Heavy-Duty Pivot Bushings: Engineered with wear-resistant surfaces to handle the radial loads of heavy industrial doors.
- Universal Actuator Mounts: A versatile bracket design that accommodates a wide range of standard ISO or NFPA cylinder brands.
