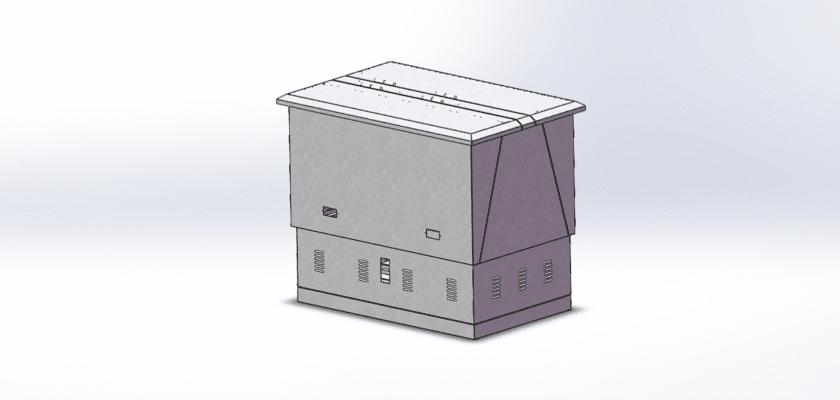

MechStream offers this professional-grade mechanical drawing for a European-Style High-Voltage Cable Distribution Box. This is an indispensable resource for engineers and technicians working on power infrastructure, renewable energy projects, and industrial utility grids. This drawing provides the exact specifications needed for the manufacturing, installation, and maintenance of HV cable distribution systems.
These specialized boxes are fundamental for safely managing and distributing high-voltage power, often in outdoor or subterranean environments. They are designed to handle significant electrical loads and provide robust protection against environmental hazards. Our detailed CAD file captures the critical design elements that are unique to European high-voltage applications, including specific clearances, insulation requirements, and material standards.
Using this MechStream drawing, you can bypass weeks of complex drafting. The file is ready for direct use in your system layouts, for verifying spatial constraints, or for sending directly to fabricators. Ensure your project meets rigorous safety and performance standards by starting with an accurate, professional blueprint.
Download this essential drawing today to secure the precision and compliance your high-voltage project demands.
Ключевые особенности:
- High-Voltage Design: Specifically detailed for HV applications, focusing on electrical clearances, creepage distances, and robust insulation.
- European Standard Compliance: Designed in accordance with typical European utility and IEC standards for high-voltage enclosures.
- Robust Enclosure: Features details for heavy-duty construction, suitable for outdoor, subterranean, or industrial environments.
- Multi-Cable Configuration: Provides a clear layout for multiple high-voltage cable entries and terminations, facilitating complex distribution.
- Format Ready: Supplied in versatile CAD formats (DWG, STEP, DXF) for immediate use in all major engineering software.
