Are you developing a product validation lab or R&D facility? MechStream offers the essential High-Temperature Environmental Chamber drawing, available for immediate download. This critical CAD file is a must-have for engineers, lab managers, and quality assurance teams who need to perform accelerated stress testing, material science research, or component reliability trials. This is the blueprint for the equipment that simulates extreme thermal conditions.

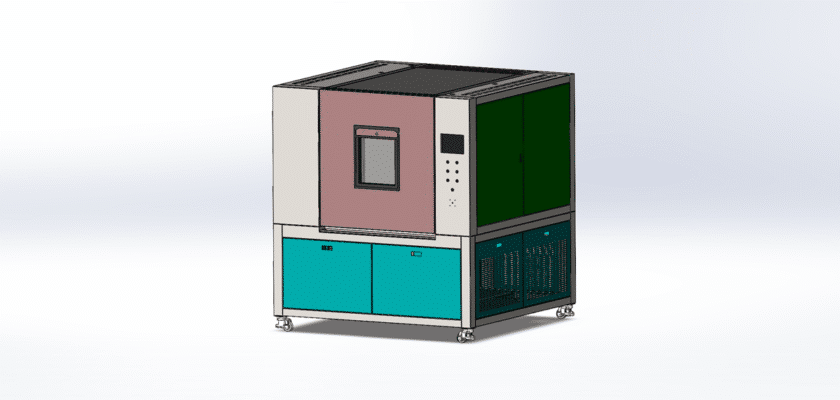

This free drawing saves you invaluable time. Instead of modeling a complex test chamber from scratch, you get a detailed and accurate model instantly. Our file is perfect for designing custom test fixtures, planning lab layouts, and ensuring proper clearances for service and operation. It details the core structure, including the internal working volume, insulation layers, door assembly, and key access ports for instrumentation and utilities.
Whether you are integrating a new chamber into an automated test line or designing a custom-built unit, this drawing provides the foundational geometry you need for a successful setup. Download this file now to accelerate your project, improve your lab design accuracy, and ensure your testing procedures are built on a solid foundation.
Ключевые особенности:
- Подробная сборка: Includes the main insulated chamber, outer shell, and door structure with sealing details.
- Component Ready: Features provisions for heating elements, air circulation fans, and sensor/instrumentation ports.
- Lab Layout Planning: Provides precise external dimensions for floor planning, utility connections, and safety clearances.
- Universal CAD Formats: Offered in DWG and STEP formats for seamless use in SolidWorks, AutoCAD, and other design platforms.
- 100% Free Access: Get this professional-grade drawing immediately to integrate into your R&D or facility project.
