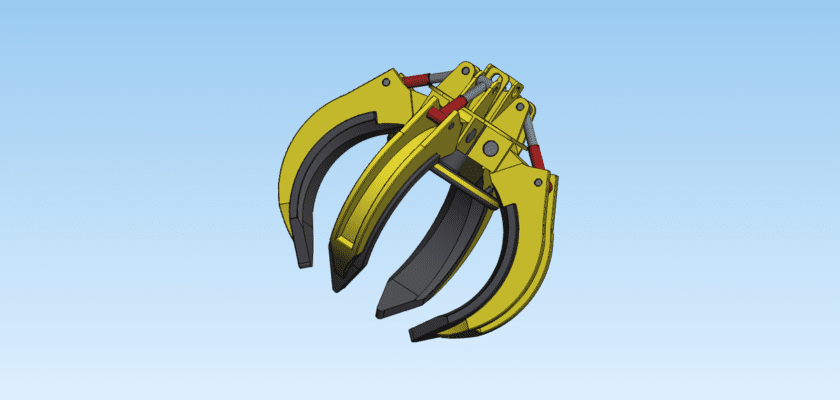

Secure the ultimate technical чертеж package for a high-precision Hydraulic Gripper! MechStream offers these precise, professional blueprints for instant download now. This is an essential resource for automation engineers, robotic designers, and manufacturing specialists who require robust and high-force clamping mechanisms. Hydraulic grippers are preferred in environments where heavy workpieces need to be securely held with high gripping force and consistent precision, unlike pneumatic or purely mechanical alternatives.

Our comprehensive package grants fast access to the detailed schematics of this incredible component. The чертеж set includes plans for the main body, the piston and cylinder assembly that actuates the jaws, the linkage mechanism (if applicable), and the mounting interface for robotic arms or slides. Understanding the mechanical advantage provided by the internal geometry and the tolerances for jaw movement is key to ensuring repeatable and reliable grasping. By downloading these powerful technical files, you gain all the necessary dimensional data, material specifications, and assembly layouts for accurate manufacturing, overhaul, or customized tooling development. Stop struggling with generic clamping solutions. Download the complete Hydraulic Gripper drawing today and leverage expert-drafted schematics to ensure your automation system performs with ultimate accuracy and strength. This resource is indispensable for advanced robotics and CNC workholding applications.

Ключевые особенности:

  • High-Force Actuation: Detailed cross-sections of the hydraulic cylinder designed to generate maximum gripping force in a compact size.
  • Jaw Kinematics: Schematics illustrating the mechanical linkage (e.g., wedge, parallel) used to translate linear piston motion into gripping action.
  • Tooling Interface: Provides dimensions and mounting patterns for attaching custom finger tooling (jaws) tailored to specific workpiece geometry.
  • Body and Mounting: Detailed structural drawings for the main gripper body and its interface with industrial robots or automated slides.
  • Sealing Specifications: Includes tolerances and material callouts for internal seals crucial for maintaining hydraulic pressure integrity.
