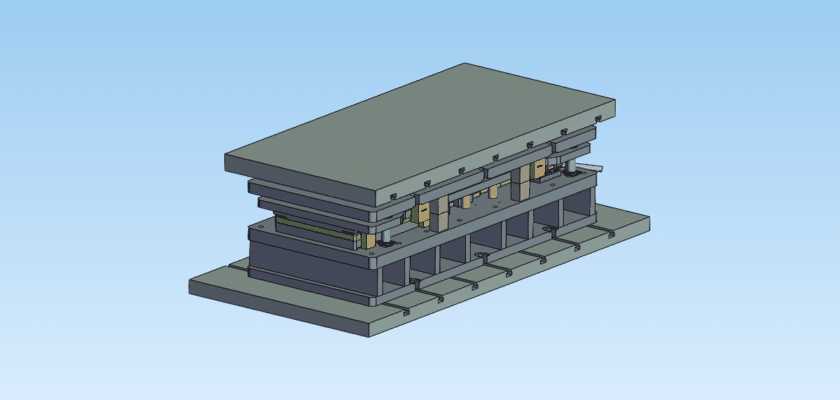

Revolutionize your production line with the Progressive Die 30 masterwork, now available for free on MechStream. This landmark CAD чертеж represents the pinnacle of our collection, featuring an ultra-complex station sequence designed for intricate, high-precision components. As manufacturing moves toward more compact and complex part geometries, your tooling must be more intelligent and robust. This layout provides a comprehensive guide to building a die capable of performing dozens of simultaneous operations with sub-millimeter accuracy.
This specific чертеж offers an unparalleled look into high-density tooling architecture. It includes specialized modules for in-die tapping, multi-angle bending, and precision coining. By analyzing this file, designers can learn how to manage the massive cumulative forces involved in a 30-station progression while maintaining perfect center-of-pressure alignment. The documentation covers everything from the heavy-duty base plate specifications to the intricate fine-tuning of the stock lifters. Whether you are developing components for the latest electric vehicle electronics or high-frequency telecommunications hardware, this blueprint provides the rigorous technical foundation you need. Download this advanced resource today and see why MechStream is the trusted source for professional engineering assets.
Ключевые особенности:
- In-Die Component Integration: Specialized stations designed for integrated tapping or hardware insertion during the stamping cycle.
- Сверхжесткая конструкция рамы: Enhanced bolster and bridge thickness to eliminate deflection during high-tonnage strokes.
- Complex Multi-Directional Bending: Advanced cam-driven inserts for creating undercuts and reverse bends within a single vertical press motion.
- Digital Twin Compatibility: High-fidelity modeling ready for simulation in FEA and kinematic analysis software.
- Smart Scrap Separation: Sophisticated sub-plate channels designed to automatically sort different types of scrap metal for recycling efficiency.
