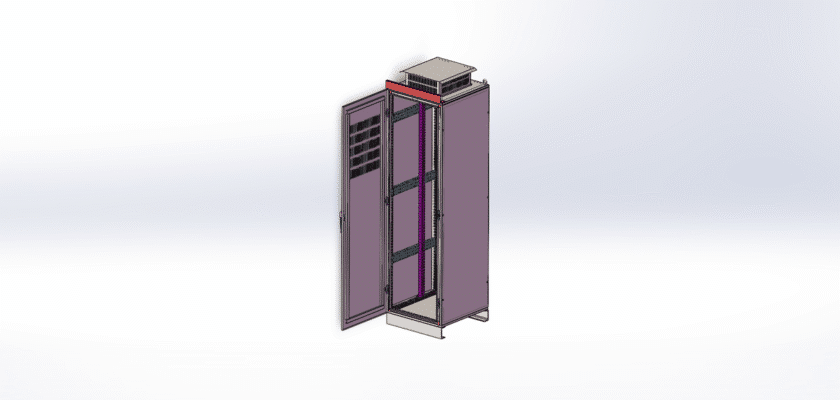

Сайт Rittal Cabinet 1 (Modular TS/VX Style) is recognized worldwide as the industry standard for high-end, scalable electrical and automation infrastructure. This modular design, often represented as the Rittal Cabinet 1 model for base configurations, is absolutely critical for housing sensitive components, providing structural strength, and ensuring high environmental protection. MechStream is delighted to offer a detailed, technical чертеж of a typical full-size modular cabinet model as a vital free download. This comprehensive CAD resource provides the exact frame geometry, mounting panel dimensions, and baying specifications necessary for precise system integration.

Это высококачественное бесплатный рисунок is an indispensable tool for panel builders and system integrators. It clearly outlines the unique, multi-fold frame profile that allows for massive load capacity and flexible mounting in three dimensions (X, Y, and Z). The design emphasizes multi-level mounting and compatibility with a vast range of internal accessories. By leveraging this precision чертеж, you can confidently plan the component layout, perform clash detection in complex bays, and ensure your assembly is manufactured and installed to the highest international standards. Download your powerful Rittal Cabinet drawing today, exclusively from MechStream, and master your next critical infrastructure project.

Ключевые особенности:

  • Modular Frame Profile: Details the robust, standardized frame structure optimized for exceptional stability and the ability to join (bay) multiple units together.
  • 25mm Hole Grid: Highlights the precision internal hole pattern that provides three-dimensional flexibility for mounting components and cable management systems.
  • Multi-Level Mounting: Specifies the mounting panel dimensions and frame channels that allow for components to be installed at various depths.
  • Removable Components: Includes details for side and rear panels, ensuring easy access for installation, maintenance, and thermal unit integration.
  • Instant Free Access: Obtain this essential, professional-grade floor-standing enclosure чертеж at no cost for immediate use in mechanical and electrical design software.
