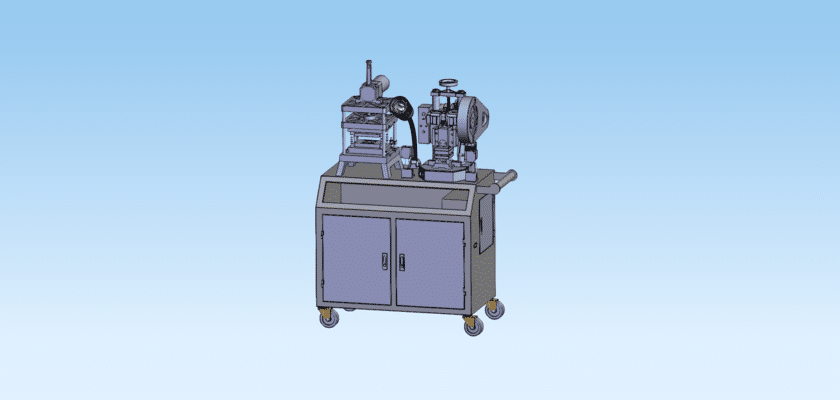

Bring industrial-grade precision to your workbench with our Small Punch Press CAD drawing. For startups and specialized workshops, a full-sized industrial press is often excessive; this “Small Punch Press” provides the perfect balance of force and footprint. This technical чертеж details a compact, bench-mounted mechanical press designed for small-scale stamping, piercing, and forming operations. It is an ideal resource for engineers designing tools for precision electronics, jewelry making, or small mechanical prototypes.
This download provides a comprehensive look at the machine’s structural rigidity and the drive mechanism that enables smooth, repeatable strokes. The чертеж includes the crank-arm assembly, the ram guidance system, and a versatile bolster plate designed to accept various small-scale die sets. By analyzing this layout, you can see how to achieve high-precision results within a limited workspace. At MechStream, we are committed to supporting the maker movement and small-scale manufacturing by providing free, professional-grade blueprints. Download this small punch press drawing today to build or integrate a high-performance forming solution into your compact production line.
Ключевые особенности:
- Экономия места: Specifically designed for tabletop or bench mounting without sacrificing structural integrity.
- Precision Ram Alignment: Features a V-way or cylindrical guide system to ensure the punch meets the die with micron-level accuracy.
- Hand-Operated or Motor-Ready: The design includes a manual lever that can be easily adapted for a small electric motor drive.
- Standardized Tooling Interface: The bolster plate is pre-drilled to match common small-scale die sets and accessories.
- High-Strength Cast Frame: Detailed geometry for a rigid frame designed to minimize deflection under maximum rated tonnage.
