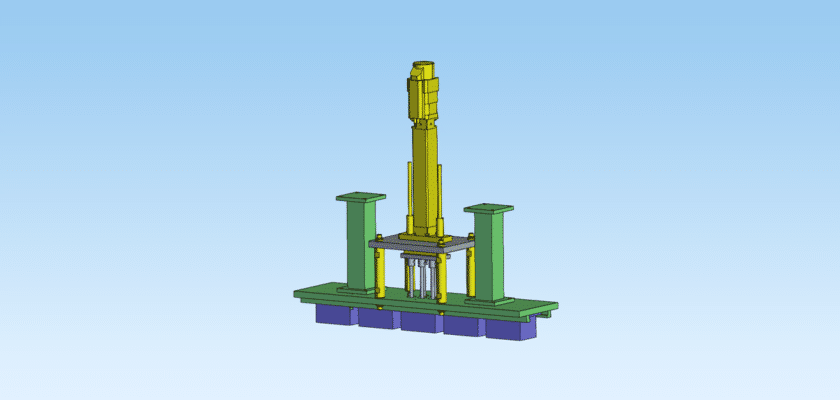

Efficient vertical movement is a cornerstone of automated logistics and multi-level manufacturing. This Spacing Lifting Platform CAD чертеж provides a comprehensive engineering blueprint for a mechanism designed to bridge height gaps between conveyor lines or workstations. Unlike standard elevators, a spacing lifter is engineered for high-frequency cycles, precisely positioning workpieces or containers at specific intervals to match the timing of downstream equipment. Whether you are managing a warehouse sorting system or a multi-stage assembly process, this design offers the structural rigidity and positional accuracy necessary to maintain a smooth, uninterrupted flow of materials.

By downloading this professional чертеж, you gain access to a field-tested mechanical assembly that emphasizes stability and safety. The design features a heavy-duty frame capable of handling significant payloads while maintaining a compact footprint to save valuable floor space. The technical documentation includes detailed views of the guiding columns, the drive assembly, and the safety interlocking points. This blueprint is an essential resource for mechanical engineers who need a reliable starting point for custom lift designs, allowing for easy scaling of the platform size or travel height to meet specific project requirements.

Ключевые особенности:

  • Precision Vertical Guidance: Utilizes high-tolerance linear bearings or rollers to ensure the platform remains perfectly level throughout the entire lift cycle.
  • Synchronized Drive System: Designed for compatibility with servo motors or pneumatic cylinders, ensuring smooth acceleration and deceleration to protect delicate loads.
  • Modular Platform Surface: The top plate can be easily fitted with rollers, ball transfers, or specialized fixtures to suit various material handling needs.
  • Integrated Safety Stops: Includes mechanical end-stops and sensor mounting points to prevent over-travel and ensure operator safety.
  • Torsion-Resistant Frame: The structural geometry is optimized to resist twisting and deflection, even when the load is placed off-center on the platform.
