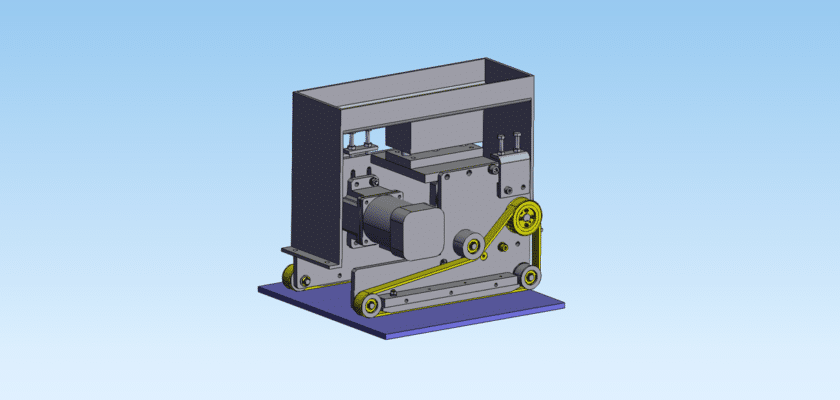

Welcome to MechStream! Streamline your production line layout with this specialized Branching And Merging Device designed specifically for synchronous toothed belts.
This mechanism solves the challenge of product sorting, lane changing, and conveyor merging without causing jams or misalignment. By utilizing the precise nature of toothed belts, this device ensures zero-slip transmission и perfect positional control when diverting products from one conveyor line to another or combining two streams into one.
Ключевые особенности:
- Точное индексирование: Uses servo or stepper motor control to position the branching carriage exactly, ensuring smooth transfer.
- Модульная конструкция: Easily integrates between standard 2020/4040 aluminum profile conveyor frames.
- Jam-Free Operation: Features a rotary shuttle mechanism или movable guide rails that physically push the product onto the desired belt path.
- Synchronous Drive: Maintains constant speed matching between the main line and branch line to prevent product tipping.
- Complete CAD Package: Available in STEP, SLDPRT, DWG, and PDF formats. Includes 3D assembly, 2D detailed fabrication drawings, and a Bill of Materials (BOM).
