Are you looking to finally organize your workshop, garage, or manufacturing space? A clean, well-ordered workspace is the key to efficiency and safety. Our Tool Cabinet drawing provides the complete, professional blueprint for building a classic, heavy-duty storage unit. This CAD file is the essential resource for mechanics, fabricators, and serious DIYers who want to build a secure and durable cabinet that is built to last.
This isn’t a lightweight, flimsy box; this design is for a robust, professional-grade tool chest engineered to hold significant weight and withstand the daily abuse of a busy shop. It provides a secure, organized home for all your valuable tools, from hand tools and sockets to power tools and diagnostic equipment.

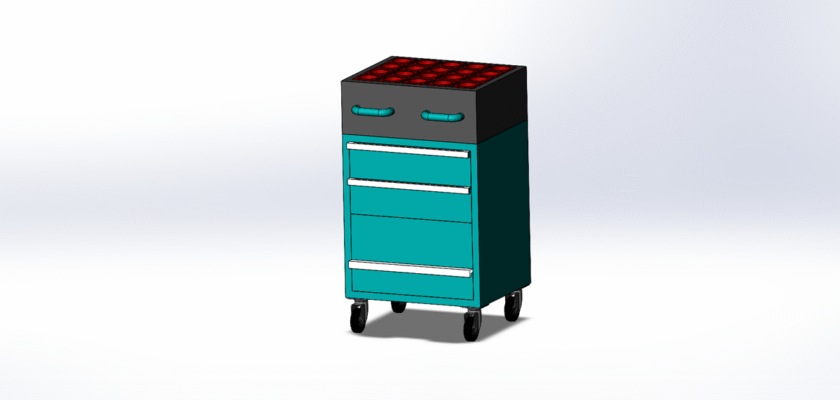

Our downloadable drawing package is your complete manufacturing guide. It contains all the necessary fabrication details, including precise dimensions, a full bill of materials, sheet metal cut lists, and bend line information. Why settle for an expensive, lower-quality commercial cabinet? Download this file to build your own custom, heavy-duty tool storage solution that will serve you for decades.
Ключевые особенности:
- Прочная конструкция: The design specifies robust steel gauges for the frame and drawers, ensuring a rigid, non-flexing body that can handle heavy loads.
- Full-Extension Drawers: Integrates heavy-duty, ball-bearing drawer slides, providing smooth operation and full access to contents, even when fully loaded.
- Central Locking System: Includes the complete mechanism for a single, key-operated lock to secure all drawers and compartments simultaneously.
- Versatile Layout: Features a proven combination of multi-sized drawers for small tools and a larger bulk storage compartment.
- Fabrication-Ready Plans: Provides a full set of plans, including cut lists, material specs, and assembly views, for straightforward fabrication.
