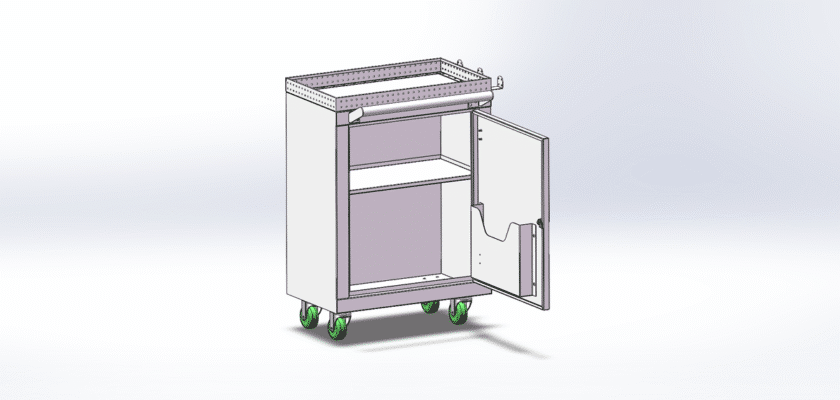

Are you tasked with performing on-site quality control or maintenance for power transformers? Our Transformer Quality Inspection Tool Cart drawing provides the complete blueprint for a specialized, mobile workstation. This is not just a storage box; this CAD file details a custom-engineered cart designed to organize, transport, and secure the unique diagnostic and inspection tools required for transformer maintenance.

Transformer inspection requires a range of specific tools, including winding resistance meters, oil analysis kits, insulation testers (meggers), and thermal imaging cameras. This cart is designed with custom compartments and foam insert provisions to protect this sensitive, expensive equipment from damage during transport between substation bays or factory floor locations. It also features a clean, sturdy work surface for logging data or referencing technical manuals.

This downloadable drawing package is an essential resource for electrical engineers, maintenance managers, and specialty equipment fabricators. It details the heavy-duty frame, the specialized drawer sizes, the secure locking system, and the robust casters needed for all-terrain use. Download this file to streamline your maintenance workflow, protect your valuable testing equipment, and improve the efficiency of your on-site quality checks.

Ключевые особенности:

  • Specialized Compartmentalization: The design includes custom-sized drawers and internal dimensions optimized for standard transformer testing equipment (e.g., Megohmmeters, TTRs, clamp meters).
  • Secure and Robust Build: Constructed with heavy-gauge steel and a central locking system to protect expensive diagnostic tools from theft and impact damage.
  • Integrated Work Surface: Features a durable, flat top surface that serves as a temporary, clean desk or staging area for test leads and manuals during inspection.
  • Heavy-Duty Mobility: Designed with large, all-terrain casters (two fixed, two swivel/locking) and a sturdy pull handle, allowing for easy maneuverability across uneven floors or outdoor sites.
  • ESD/Safety Provisions: Includes a grounding point and options for an anti-static mat on the work surface to protect sensitive electronic testing equipment.
