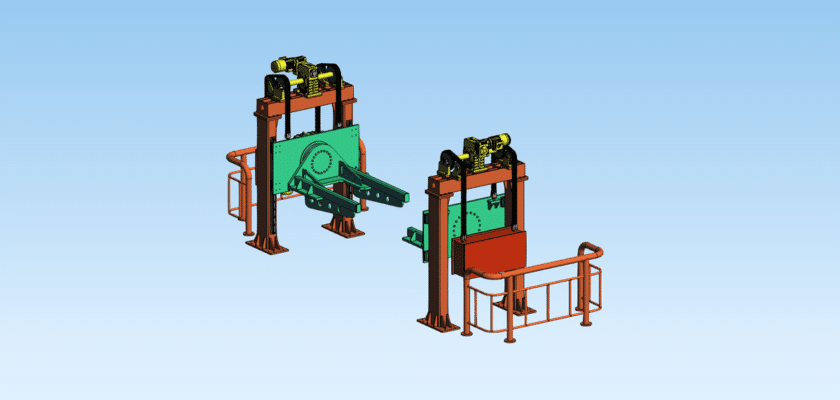

Elevate your heavy vehicle manufacturing with this powerful free drawing download: the complete plans for a Truck Chassis Welding Tilting Machine. Fabricating robust truck chassis requires performing long, high-integrity welds in optimal positions, a task made challenging by the component’s size and weight. This specialized tilting machine is an absolutely vital piece of equipment, designed to clamp the massive truck frame securely and rotate it through 360 degrees, bringing every weld joint into the efficient, high-quality down-hand position. MechStream offers these detailed schematics to empower engineers and fabricators in the commercial vehicle industry.

The design emphasizes extreme rigidity, high load capacity, and precise control to safely manipulate the heavy chassis assembly. The documentation provides crucial insight into the massive hydraulic or electromechanical tilting drive systems, the heavy-duty bearings, and the robust clamping fixtures required to prevent movement and deflection during welding. Utilizing this machine not only significantly improves weld quality (by reducing out-of-position welding) but also enhances worker safety and dramatically cuts down on crane time. Gaining access to this professional blueprint is key to optimizing your production line for speed and structural integrity. Download your free Truck Chassis Welding Tilting Machine drawing today and master heavy-duty chassis fabrication!

Ключевые особенности:

  • Высокая грузоподъемность: Engineered specifically to safely support and manipulate the substantial weight and size of a complete Truck Chassis.
  • 360-Degree Rotation/Tilt: Provides full manipulation capability, ensuring all welding can be performed in the optimal down-hand position for superior quality.
  • Прочная система зажима: Features heavy-duty, adjustable clamps designed to securely lock the chassis onto the frame, preventing movement during welding.
  • Enhanced Safety and Ergonomics: Reduces the need for awkward overhead or vertical welding, improving efficiency, consistency, and operator safety.
  • Complete Technical Drawing: Бесплатно чертеж package includes detailed structural frame analysis, drive system layouts, and critical interface dimensions for fabrication.
