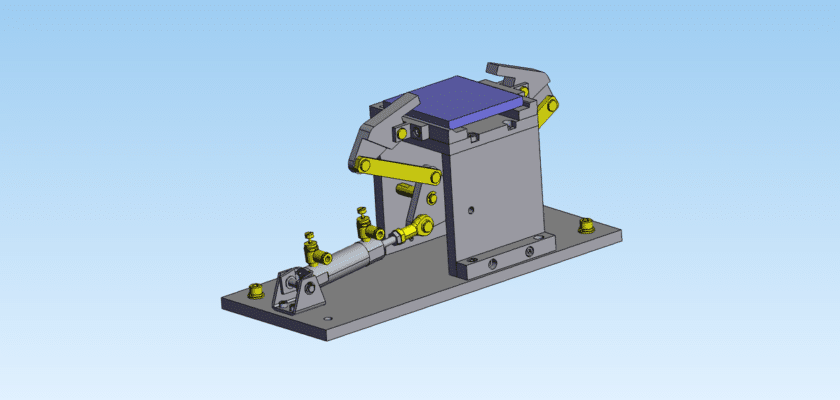

Download the free, professional drawing of Two-Location Simultaneous Workpiece Clamping Mechanism on MechStream—designed for high-precision manufacturing and automated production lines. This reliable mechanism enables synchronous clamping at two positions, optimizing workflow and reducing setup time significantly.
Ключевые особенности:
- Dual-position synchronization: Clamps two workpieces simultaneously, cutting loading/unloading time by 50% .
- Strong clamping force: Leverages lever force amplification for stable holding, suitable for heavy or precision workpieces .
- Versatile compatibility: Adapts to non-equal height workpieces via floating design, fits various industrial scenarios .
- Precise positioning: Boasts ±0.01mm repeat accuracy, ensuring consistent machining quality .
- Compact & durable: Single-cylinder drive saves space; robust structure ensures long-term stable operation .
