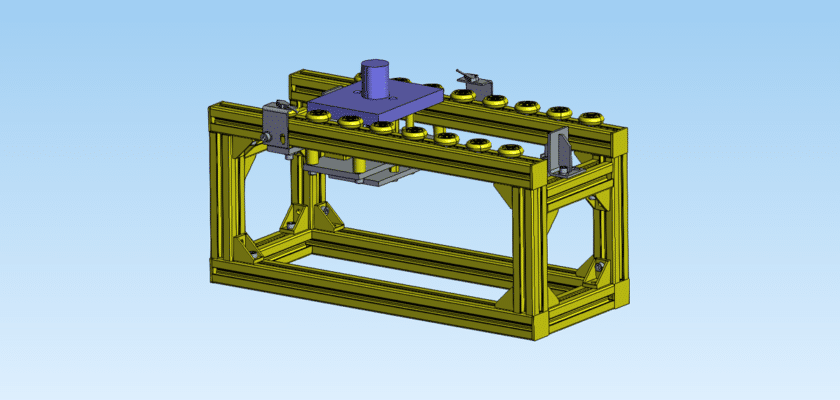

The seamless movement of components through an assembly line is the heartbeat of efficient manufacturing. This Workpiece Transfer Device CAD чертеж provides a comprehensive mechanical blueprint for a system designed to bridge the gap between workstations. Whether moving parts from a feeder to a press or from a CNC machine to an inspection area, this device ensures that the transition is smooth, timed perfectly, and maintains part orientation. By replacing manual handling with this automated transfer solution, manufacturers can significantly reduce cycle times while minimizing the risk of part damage or operator injury.

By downloading this professional чертеж, you are gaining access to a flexible design that can be adapted for various drive methods, including pneumatic cylinders, timing belts, or motorized rack and pinion systems. The assembly focuses on high-repeatability and rigidity, ensuring that every transfer cycle lands the workpiece precisely where the next machine expects it. The technical files include detailed layouts for the gripper interface, support rails, and vibration-dampening mounting plates. This is an essential resource for mechanical engineers building custom automation cells who need a proven, industrial-grade foundation to speed up their development process.

Ключевые особенности:

  • Modular End-Effector Interface: Features a universal mounting plate that can be equipped with vacuum cups, mechanical grippers, or magnetic lifters to suit any material.
  • Precision Linear Guidance: Utilizes high-quality linear rails and bushings to ensure the transfer path remains perfectly straight and friction-free over long travel distances.
  • Synchronized Timing Control: Designed with sensor mounting points for Limit Switches or Proximity Sensors to allow for perfect integration with PLC control systems.
  • Heavy-Duty Structural Frame: The CAD model specifies high-strength aluminum profiles or steel weldments to prevent deflection when carrying heavy payloads at high speeds.
  • Adjustable Stroke Length: Includes mechanical stops and adjustable linkages, allowing you to fine-tune the transfer distance to fit your specific floor layout.
