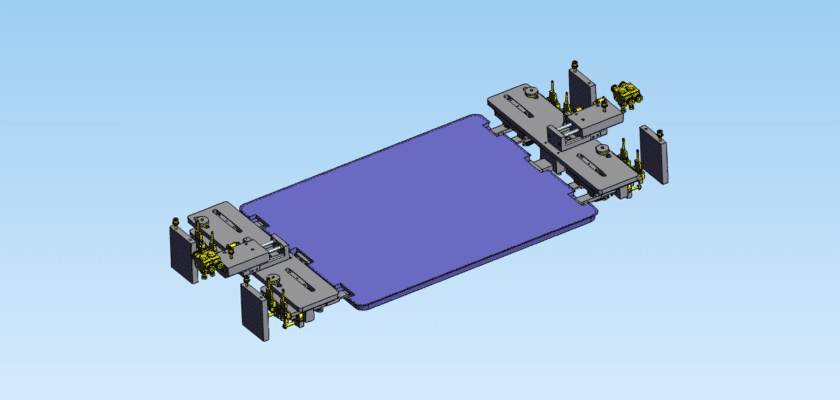

Searching for a reliable solution to automate your packaging or assembly line? This Separation Of Stacked Trays CAD drawing provides a comprehensive engineering blueprint for a high-efficiency denesting system. In modern manufacturing, the ability to consistently isolate a single tray from a nested stack is critical for reducing downtime and preventing material jams. This design utilizes a precision-engineered separation logic that can be easily integrated into existing conveyor systems or standalone workstations.
By downloading this professional drawing, you gain access to a field-tested mechanical structure optimized for speed and repeatability. The mechanism is designed to handle various tray materials, including plastic, foam, and cardboard, ensuring versatility across different industries such as food packaging, electronics, and logistics. The assembly layout focuses on minimizing friction and mechanical wear, which significantly extends the service life of the components while maintaining high-speed throughput. Whether you are a mechanical engineer looking for a base design to customize or a student studying automation kinematics, this file serves as an invaluable resource.
Key Features:
- Precision Denesting Logic: Features a specialized cam or pneumatic-driven separation finger system to ensure only one tray is released at a time.
- Adjustable Stack Support: The structural frame is designed to be modular, allowing for quick adjustments to accommodate different tray dimensions and depths.
- High-Speed Compatibility: Optimized geometry for rapid cycling, making it suitable for high-volume production environments.
- Robust Material Specifications: Includes detailed notes on component materials to ensure structural integrity under continuous operation.
- Simplified Integration: The compact footprint allows the mechanism to be mounted directly onto standard aluminum profile frames or custom machine bases.
