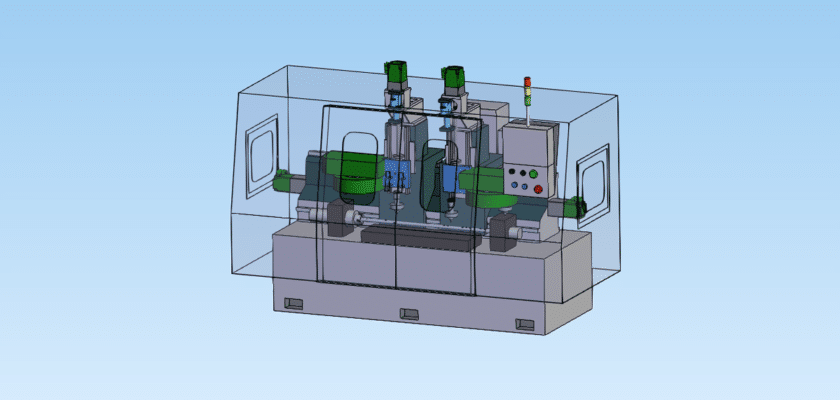

Traditional drilling removes material, but the Thermo-Melting Drilling Machine Tool (also known as a friction or flow drill) utilizes thermal energy to displace it, creating a reinforced bushing in thin-walled materials. This comprehensive engineering drawing provides the technical blueprints for a machine optimized for this high-speed, high-heat process. Instead of cutting chips, this tool uses a specialized tungsten carbide bit and high axial pressure to generate intense localized friction, melting the workpiece momentarily to form a sleeve that is three to four times thicker than the original material.
This technical document details the high-speed spindle requirements and the robust column design needed to withstand the significant downward force of the friction process. By downloading this blueprint, you gain access to a design optimized for thermal management, featuring heat-dissipating tool holders and specialized ventilation. The layout includes specifications for the feed rate control systems—which are critical for transitioning from the initial melting phase to the final bushing formation. Whether you are working in the HVAC, automotive, or furniture industry, this resource provides a verified framework for implementing chip-less drilling technology that eliminates the need for weld nuts or threaded inserts.
Utilize this industry-standard reference to understand the mechanical requirements for consistent, repeatable thermal cycles. At MechStream, we provide the blueprints that help you modernize your production floor with advanced material-forming solutions. Download this high-fidelity technical asset today.
Key Features:
- High-Thrust Spindle Design: Engineered to handle the high axial loads required to penetrate metal through friction without mechanical deflection.
- Thermal Dissipation Architecture: Includes detailed specifications for heat-sink tool holders to prevent thermal transfer from the bit to the machine bearings.
- Precision Feed Rate Control: Detailed schematics for the Z-axis drive system to manage the delicate balance between friction heating and material displacement.
- Integrated Bushing Support: Provides the layout for specialized worktables that allow for the “petal” formation on the underside of the workpiece.
- Hardened Guide Components: Features callouts for heat-resistant materials and coatings on all moving parts near the high-temperature processing zone.
