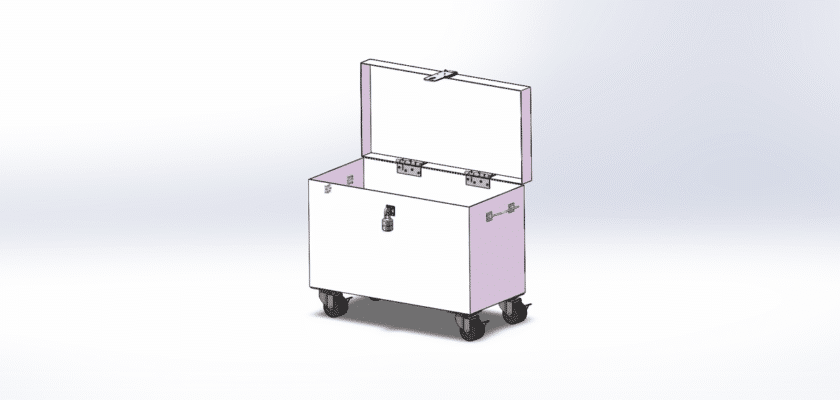

Are you a contractor, construction worker, or field technician who needs professional-grade, mobile storage? Our Toolbox (With Wheels) drawing provides the complete blueprint for building a heavy-duty, rolling toolbox designed for the toughest job sites. This CAD file is the essential resource for fabricators, mechanics, and builders who demand rugged durability and easy portability.

This design is a significant upgrade from small plastic boxes. It details a large-capacity, cabinet-style toolbox engineered to be rolled across rough terrain, up ramps, and around the shop floor. This box is built to secure power tools, diagnostic equipment, and supplies, ensuring they are protected from damage, theft, and the elements while remaining fully mobile.

Our downloadable drawing package is your complete manufacturing guide. It includes all the precise dimensions, sheet metal cut lists, welding specifications, and assembly views. The design details the reinforced base, the integration of heavy-duty wheels (often large, semi-pneumatic casters), a secure hinge mechanism, and a heavy-duty locking hasp. Download this file to save design time and build a professional, tough, and supremely useful mobile storage unit.

Key Features:

  • Heavy-Duty Mobility Base: The design includes a reinforced axle and large-diameter, rugged wheels (often fixed or swivel casters) engineered to handle rough terrain and heavy loads.
  • Lockable Hinge Lid: Features a large, hinged top lid with a secure, oversized padlock hasp, offering excellent security and full access to the internal storage area.
  • Internal Tote Tray Provisions: The drawing includes dimensions and mounting points for removable internal tote trays, which are essential for organizing small parts and hand tools.
  • Robust Steel Construction: Specifies heavy-gauge steel for the body and lid, with fully welded seams for maximum strength and impact resistance.
  • Folding Pull Handle: Includes the design for a sturdy, retractable or folding handle, simplifying the movement and positioning of the heavy box.
