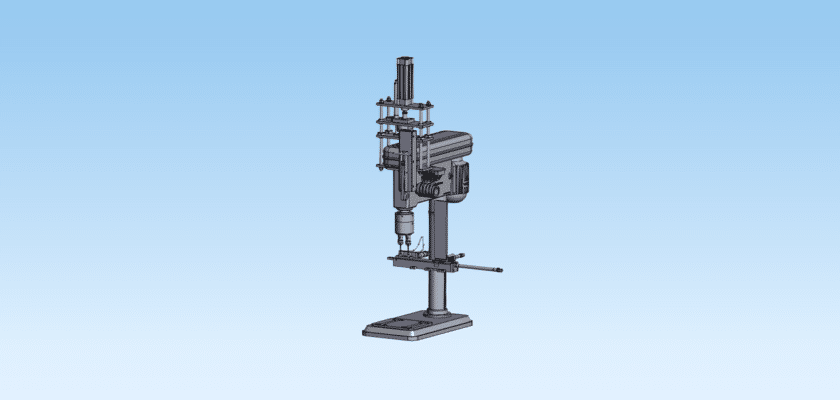

The Vertical Drilling Machine remains one of the most indispensable assets in any mechanical workshop, providing the essential capability for precision hole-making, reaming, and tapping. This professional engineering drawing provides the complete structural and mechanical breakdown of a high-performance industrial drill press. Designed for rigidity and ease of operation, this machine utilizes a vertical spindle alignment that allows gravity to assist in stability while the operator or automated feed system applies precise axial pressure. This blueprint is an essential resource for those looking to understand the core kinematics of stationary drilling equipment.

This technical document details the critical components including the heavy-duty base casting, the precision-ground column, and the quill assembly. By downloading this drawing, you gain access to a design optimized for high-torque operations, featuring detailed layouts for the pulley or gear-driven transmission systems. The documentation includes exact specifications for table travel and spindle runout tolerances, ensuring that you can achieve perfectly centered holes in various materials from soft plastics to hardened alloys. Whether you are maintaining existing shop equipment or designing a custom drilling station, this resource provides the verified mechanical data required for high-accuracy fabrication.

At MechStream, we are committed to providing the foundational assets that keep industrial production lines moving. Use this industry-standard reference to master the assembly of the mechanical feed and depth-stop mechanisms. Download this high-fidelity technical asset today and elevate your manufacturing precision.

Key Features:

  • Heavy-Duty Cast Iron Base: Engineered with a wide footprint and high-mass casting to dampen vibrations and ensure the machine remains stable under load.
  • Precision Spindle Alignment: Detailed schematics for the quill and spindle housing to guarantee verticality and minimize bit deflection.
  • Versatile Speed Transmission: Includes layouts for multi-step pulley or gear systems to provide optimal torque for various hole diameters.
  • Ergonomic Table Adjustment: Specifications for the rack-and-pinion elevation system and 360-degree table rotation for flexible workpiece positioning.
  • Integrated Safety Shielding: Features mounting points for adjustable eye shields and emergency stop placement to comply with modern shop safety standards.
