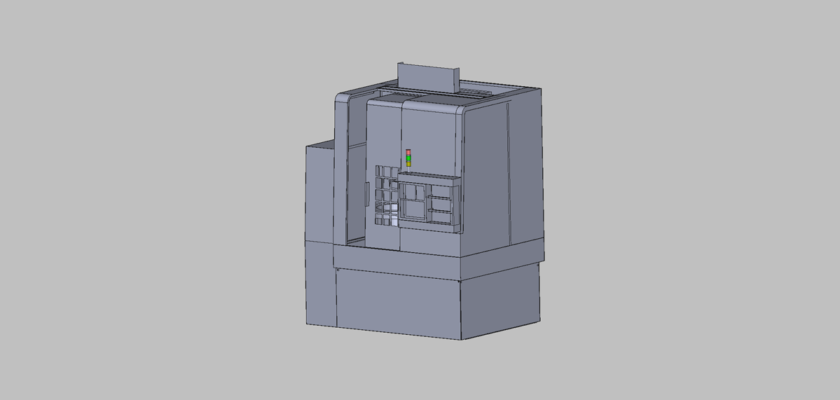

Are you in the machine tool manufacturing sector or tasked with refurbishing industrial equipment? Finding accurate and complete Vertical Lathe Sheet Metal Drawing can be a complex and expensive challenge. MechStream solves this problem by offering a premium, high-quality drawing package for the essential enclosure components of a standard Vertical Lathe, completely free of charge.
This comprehensive download is indispensable for mechanical designers, fabricators, and maintenance teams. The set includes detailed blueprints for the lathe’s protective covers, guards, chip conveyors, and operator panels. It meticulously outlines bending lines, welding points, fastening details, and material gauges required for durable and functional sheet metal parts. Ensuring proper chip containment, coolant management, and operator safety relies heavily on the quality of these enclosures. Download this invaluable resource today to accelerate your fabrication timeline and ensure compliance with industrial safety standards, all while maintaining the professional appearance of the machine tool.
Key Features:
- Complete Enclosure Set: Contains drawings for all critical sheet metal components, including protective shrouds and access panels.
- Chip and Coolant Management: Engineered designs to efficiently direct metal chips and machining coolant away from the working area.
- Safety Compliance: Features detailed specifications for robust guards and interlocks to enhance operator safety during operation.
- Fabrication Ready: Blueprints include precise dimensions, bend radii, and material thickness (gauge) for direct manufacturing.
- Aesthetic and Functional Design: Provides the necessary documentation to create a professional-looking, durable, and easily maintainable machine exterior.
