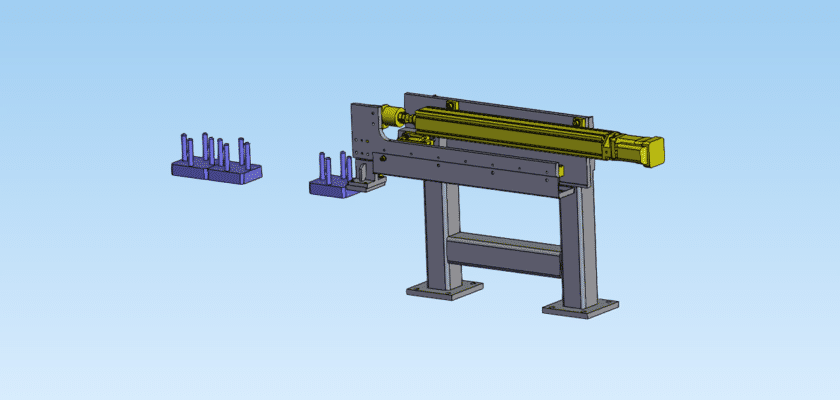

Download the free, professional Workpiece Conveying in Confined Spaces drawing on MechStream—tailored for tight manufacturing environments, automated production lines, and precision machining. This optimized mechanism solves space constraints while ensuring stable, efficient workpiece transfer.
Key features:
- Ultra-compact design: Low-profile structure with minimal footprint, fitting narrow aisles and limited work areas.
- Flexible maneuverability: Supports small-radius bending and vertical conveying for complex layouts.
- Precision positioning: Offers ±1mm repeat accuracy, guaranteeing consistent workpiece alignment.
- Sealed operation: Enclosed structure prevents dust leakage and protects materials from moisture.
- High load adaptability: Handles 6-40kg workpieces, compatible with various industrial scenarios.
